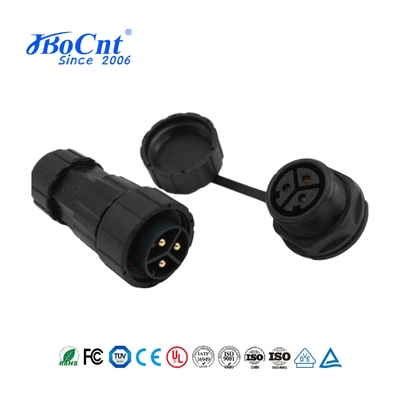

IP68 PV Connector 3 Pin Waterproof Circular Connector For Photovoltaic System

50 sets
MOQ
Negotiable
Price
IP68 PV Connector 3 Pin Waterproof Circular Connector For Photovoltaic System
Features Gallery Product Description Chat Now
Features
Specifications
Name: PV Connector
Hardware Materials: Brass/Gold Plated
Housing Material: PA66
Mechanical Life: 3000 Times
Product Weight: 16.10g
Rated Current/ Instantaneous Current: 5A/10A
Operating Temperature: -20℃~120℃
Wiring Range: 22AWG
Recommended Welding Standards: 480℃/4S
Highlight:

IP68 PV Connector

,

3 Pin Waterproof Circular Connector

,

3 Pin Waterproof Connector

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Jbocnt
Certification: CE、TUV、UL、RoHS
Model Number: M25 3Pin
Payment & Shipping Terms
Packaging Details: High quality export packaging
Delivery Time: Sample: 1-3 days; Small order: 3-10 days; Bulk order: 10-18 days
Payment Terms: ,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability: 10000/day
Product Description

Jbocnt Group IP68 Energy Storage System 3-Pin Waterproof Circular Connector Power Male Female Plug Wire Connector For Photovoltaic System Inverter Power Extension Cord



Product advantages


  ☑  Compact structure, high space utilization
    Adopt optimized structure, enhance heat dissipation
    Easy to install and disassemble
  ☑  Low resistance, high conductivity, reduce energy loss
    Insert a variety of auditory and visual feedback
   Adapt to vibration, temperature changes and humid environments


Product Description

JKM 3Pin M25 Panel Mount Connector Waterproof IP67 Electrical Plug

Product Features: 1)The shell is made of nylon PA6, some components have been added with glass fiber to enhance hardness, high temperature resistant, Fire rating 94V-0. The material of the needle is copper plated with gold, which is not easy to rust and oxidize.
2)Waterproof Rating:IP67 Waterproof level, the female connector come with dust cover, the male connector built in waterproof ring, multiple protection/any Weatherproof / Moisture-proof/Dust-proof/ anti-UV.

3)Wide Range of Application:Be used for WVC and GTB solar micro inverters(Note: Only for WVC series 600W-2800W and GTB series 400W-1600W, please check compatibility before purchasing.), also further used in other fields of electrical engineering, such as automobiles and ships, aquaculture farms, urban LED lighting, etc.


What is the size?


  IP68 PV Connector 3 Pin Waterproof Circular Connector For Photovoltaic System 0IP68 PV Connector 3 Pin Waterproof Circular Connector For Photovoltaic System 1

IP68 PV Connector 3 Pin Waterproof Circular Connector For Photovoltaic System 2IP68 PV Connector 3 Pin Waterproof Circular Connector For Photovoltaic System 3IP68 PV Connector 3 Pin Waterproof Circular Connector For Photovoltaic System 4IP68 PV Connector 3 Pin Waterproof Circular Connector For Photovoltaic System 5


OUR CUSTOMERS


IP68 PV Connector 3 Pin Waterproof Circular Connector For Photovoltaic System 6


FAQ


1>. Q: Can you help with the design?

A: Yes, we are an ODM/OEM company that has been focusing on the production and sales of connectors and their harnesses and cables since 2006.

2>. Q: When will you start helping with the design?

A: We will draw a simple plan for preliminary discussion. After the quotation and order are completed, we will start drawing and confirm the design plan with the customer again.

3>. Q: What if the customer finds quality problems?

A: Our quality and engineer team will actively respond to quality issues within 2 hours, because we are committed to establishing a long-term strategy with our customers and providing better service is our value.

4>. Q: Do you have standard products to shorten the customer's prototyping and mold manufacturing cycle?

A: Yes, we have developed more than 1,000 sets of molds, some of which can be directly used by customers. In addition, we have focused on the wire harness field for more than 19 years and have more than 5,000 product types.
