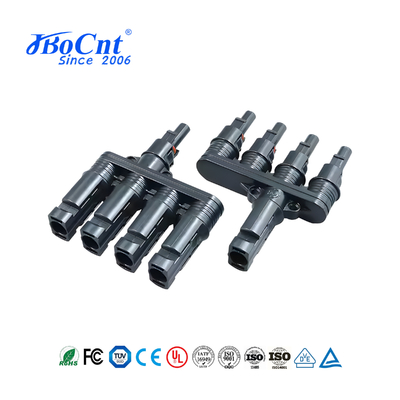

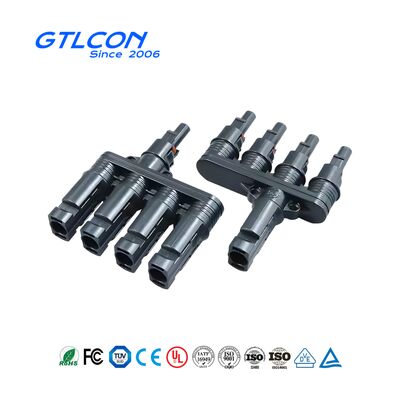

One In Four Solar Panel Connectors Male Female Parallel Branch Connectors ODM OEM

Jbocnt Group Jbocnt Group ODM OEM One In Four Waterproof IP68 Solar Cable Panel Photovoltaic System Male Female Parallel Branch Connector DC Photovoltaic Plug Socket Photovoltaic Connector

Product advantages

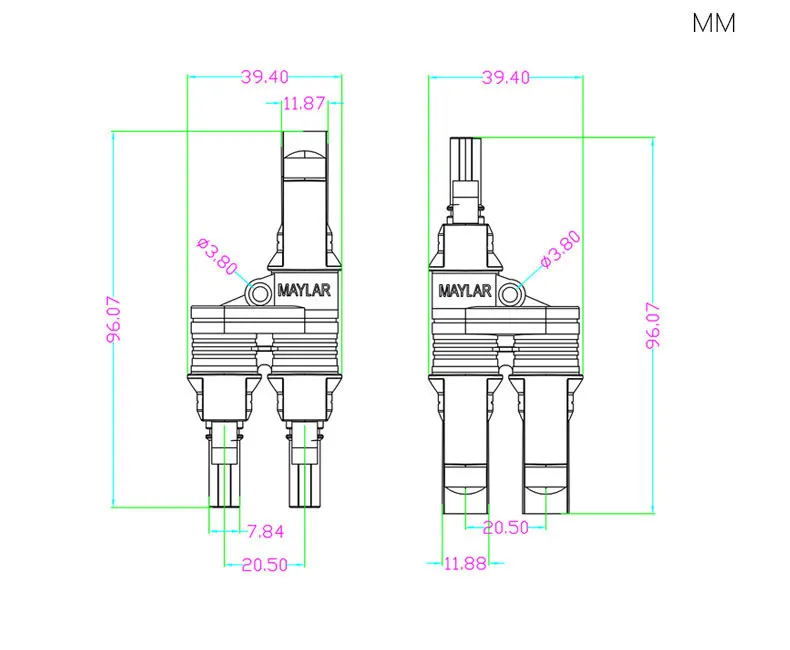

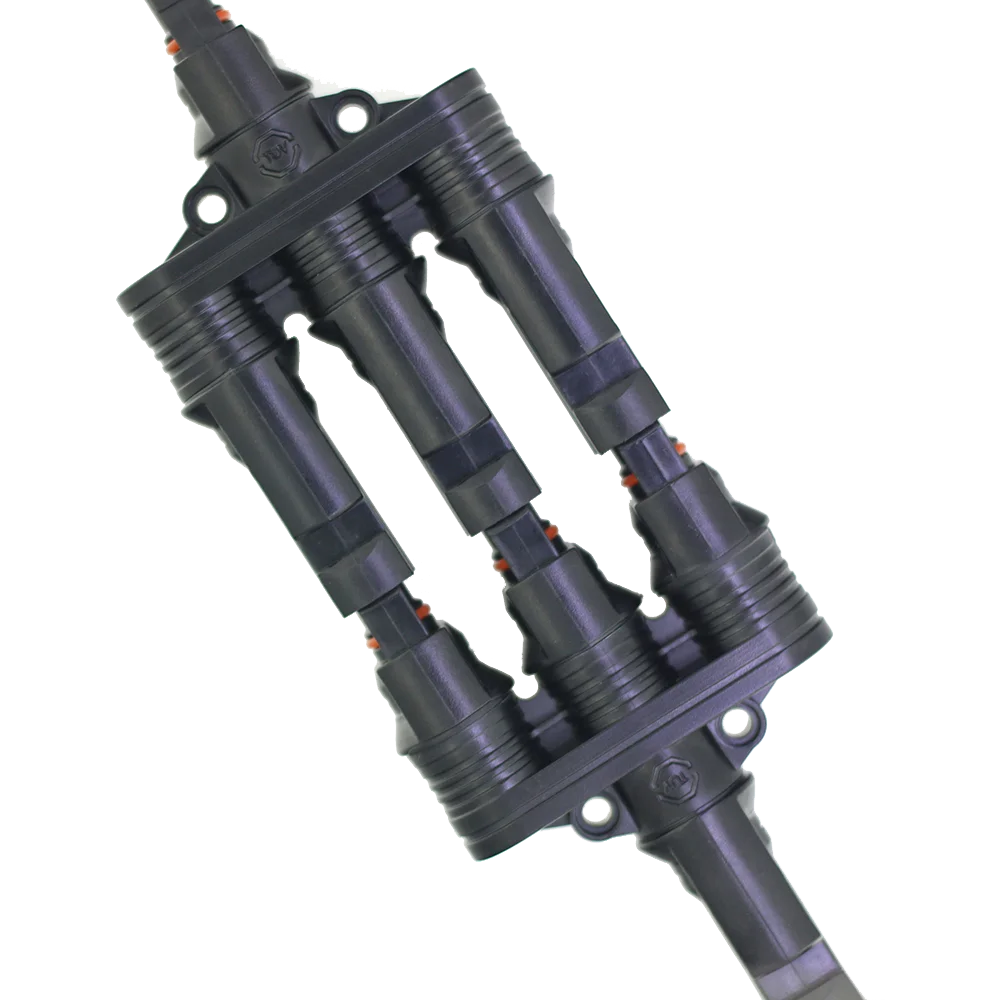

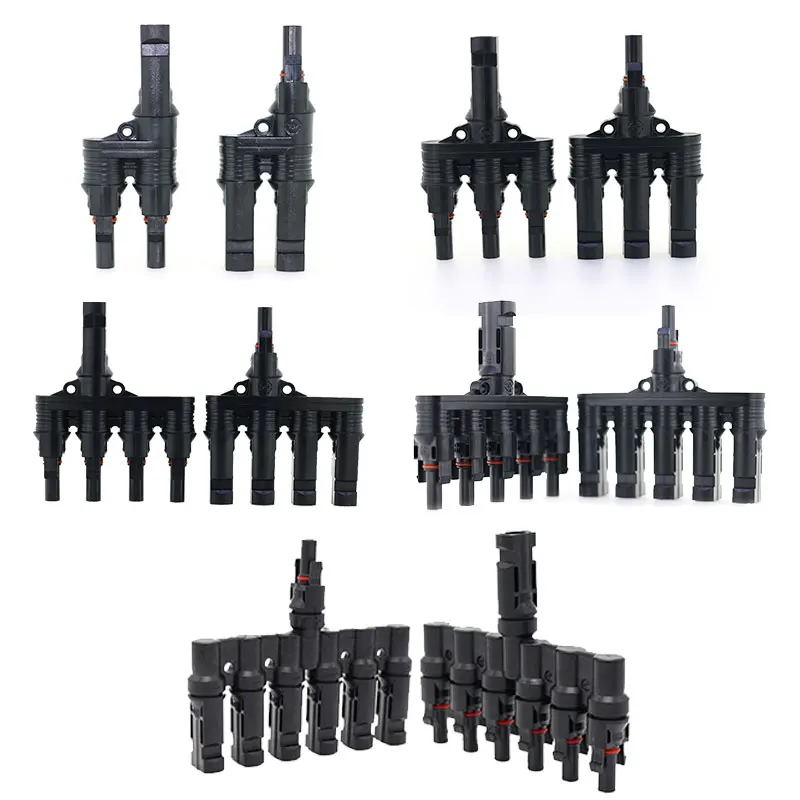

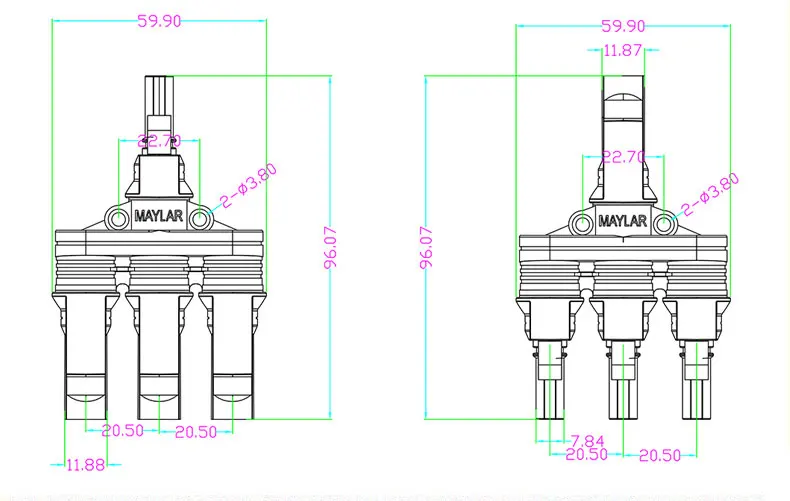

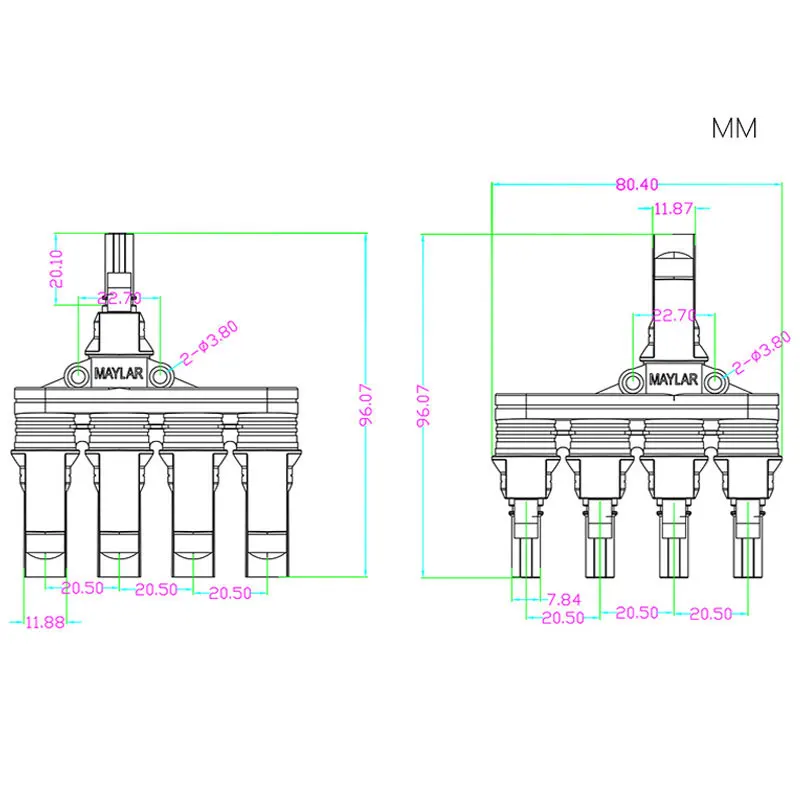

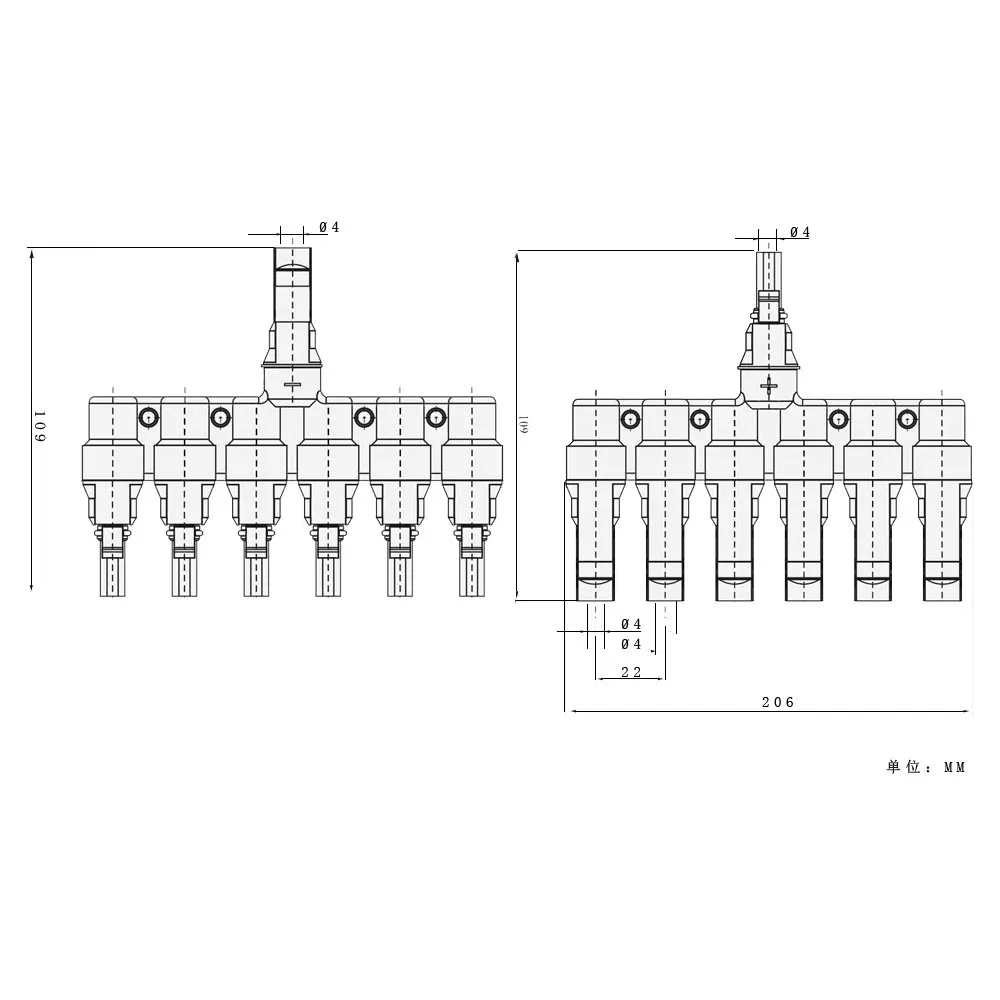

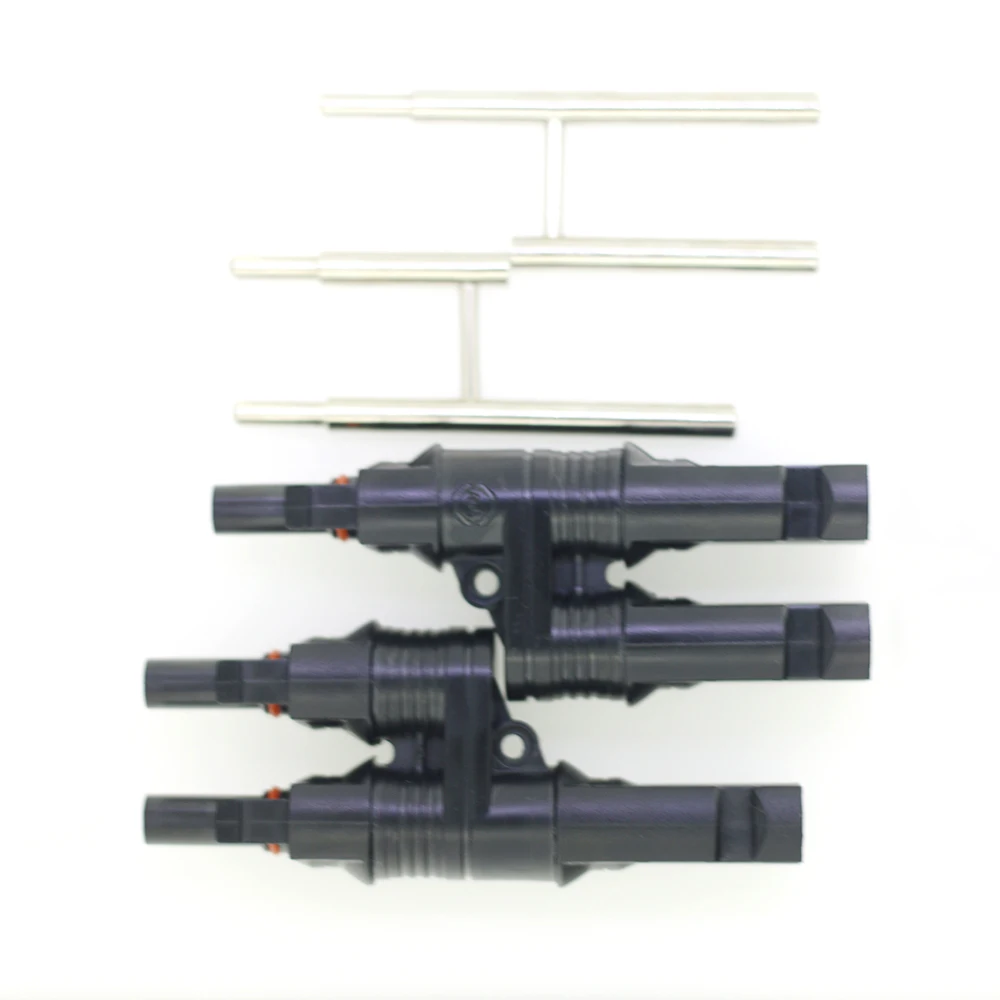

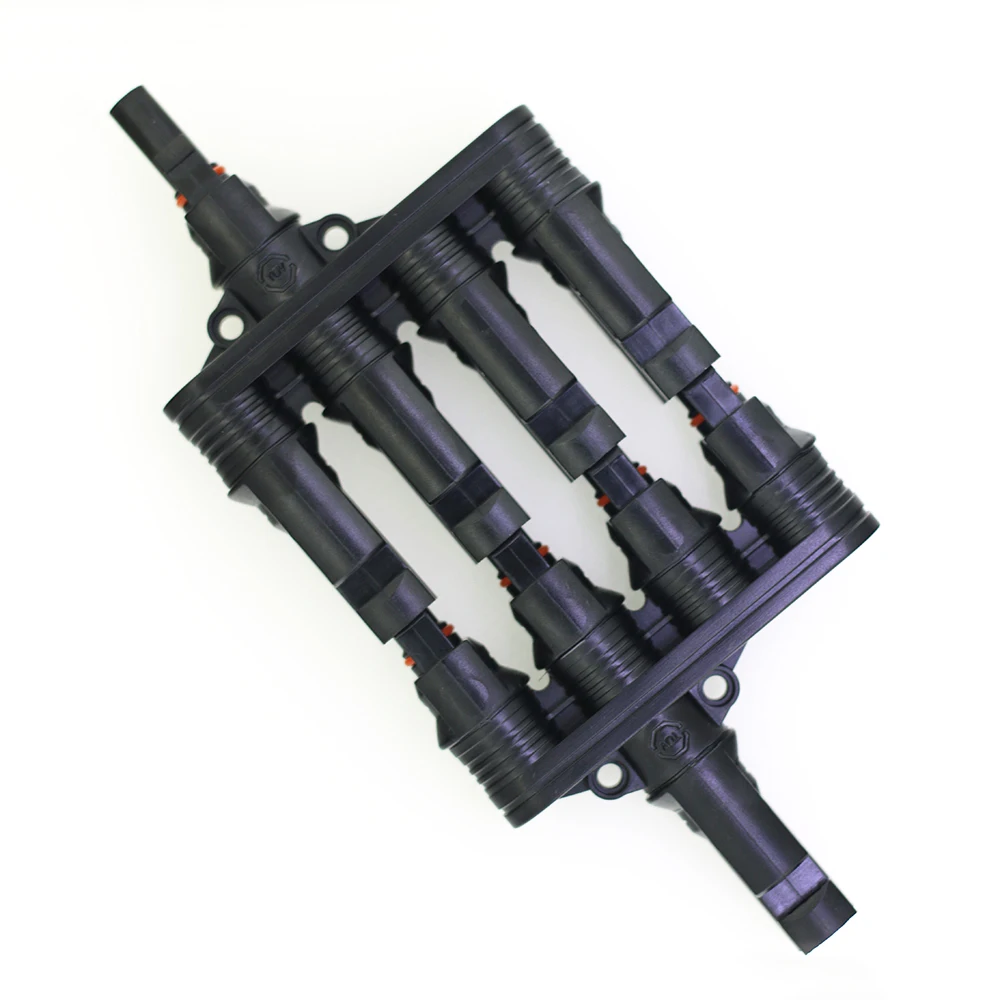

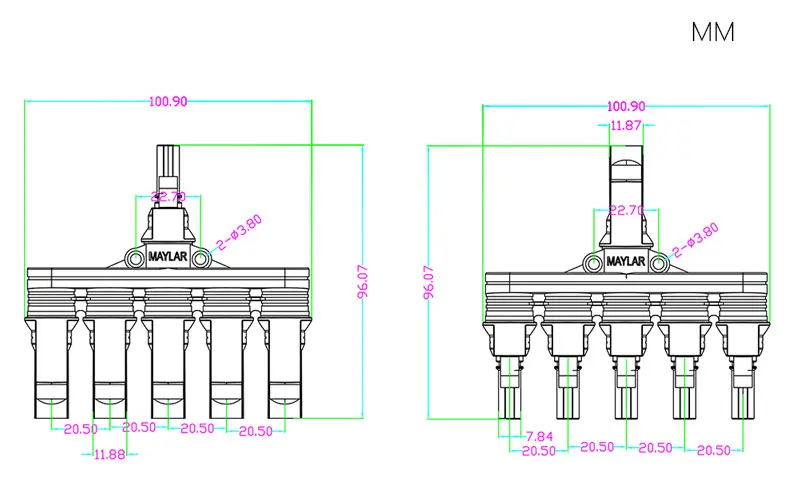

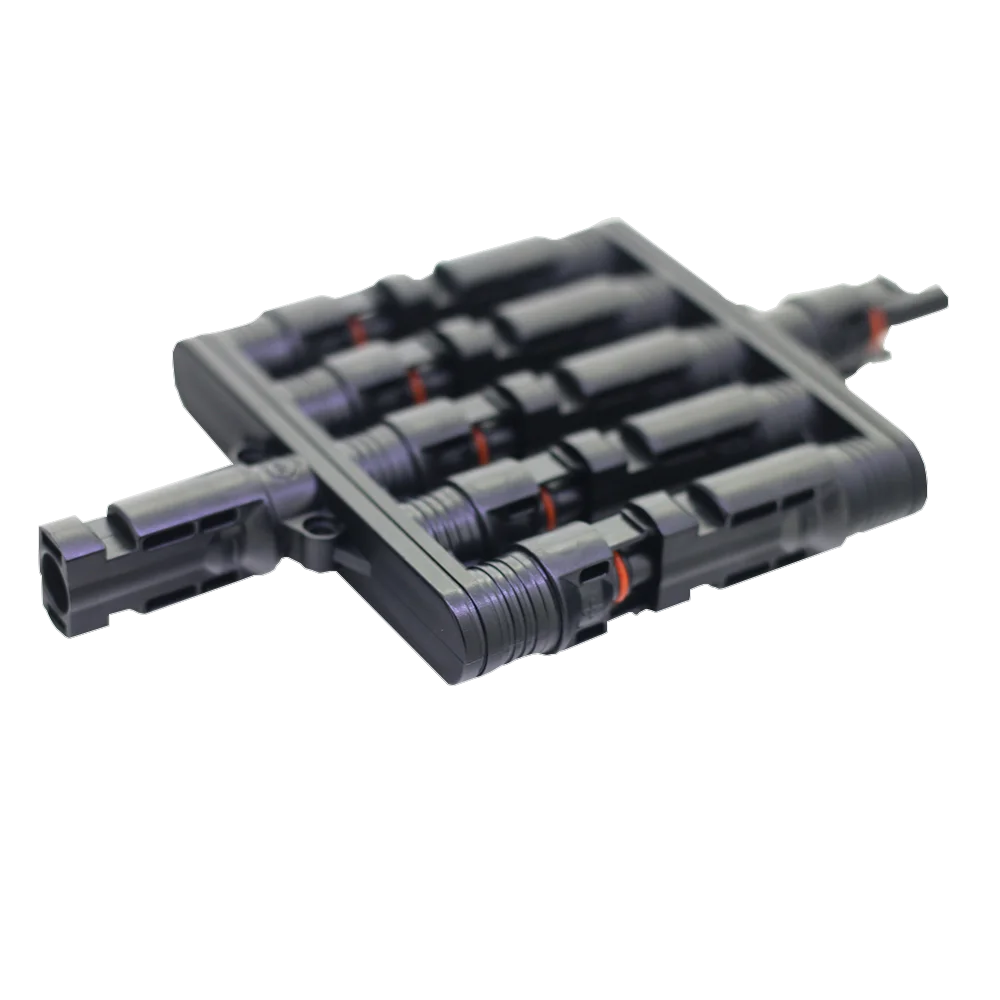

2/3/4/5/6 TO 1 H TYPE CONNECTOR

This is our Solar H branch connector integrating R&D, production and sales. It has IP68 protection level, UL94-VO flame resistance level, strong anti-aging, radiation resistance, high temperature resistance, low temperature resistance, excellent electrical conductivity, easy installation, and can be used for a long time. For outdoor use, it also has TUV, CE, RoHS, REACH, UKCA certification.

1. High quality PPO Material 2. T2 Copper Conductor 3. High-Strength Waterproof Ring 4. Stable Self-Locking Structure 5. Protection Class IP68 6. Strong Adaptability To The Environment

High Quality PPO Material

High-quality materials, high temperature resistance, low temperature resistance, high temperature resistance, high strength, impact resistance, flame retardant.

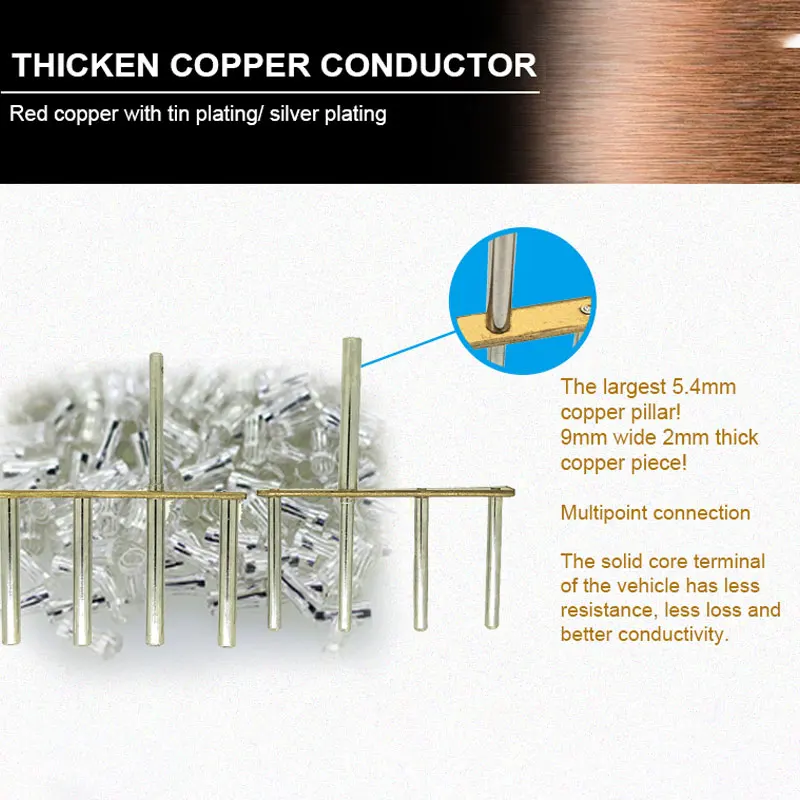

T2 Copper Conductor

Open-type inner core (O-shaped inner core is optional), tinned/silver-plated copper, wear-resistant, corrosion-resistant, prevent oxidation, low resistance and strong conductivity.

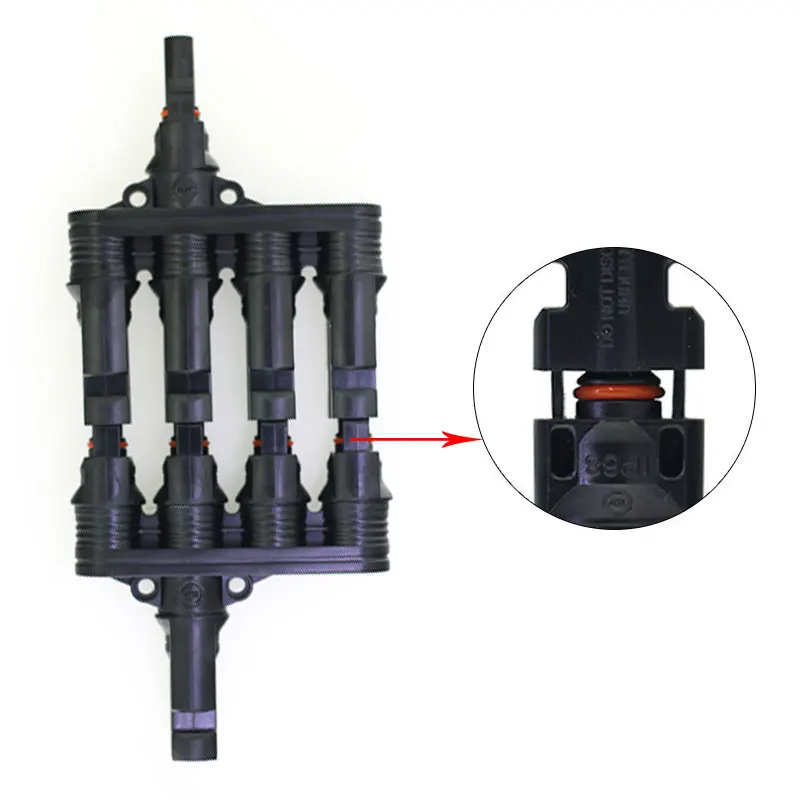

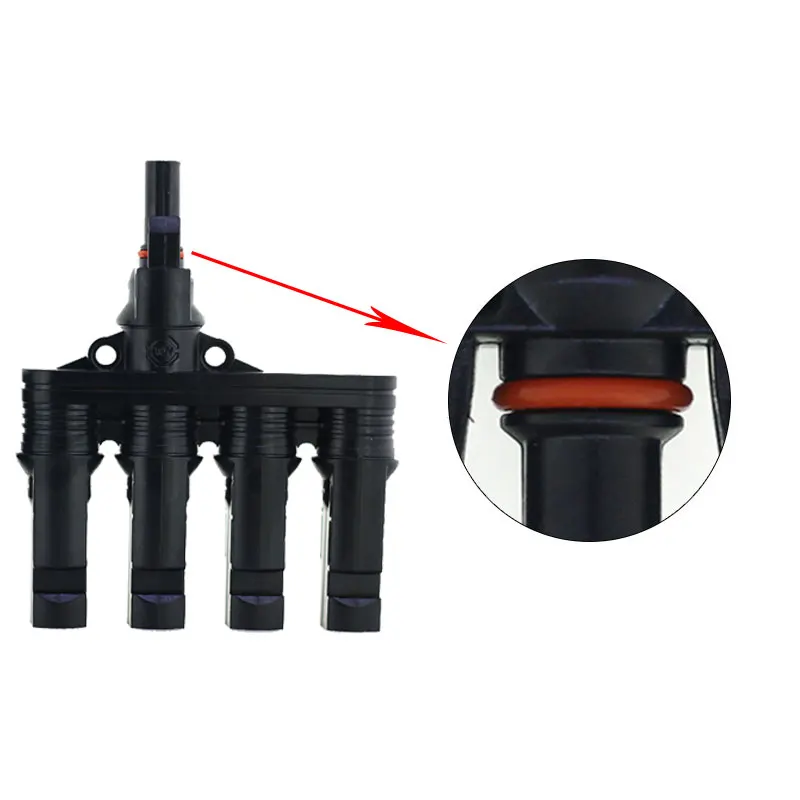

High Strength Waterproof Ring

The product adopts high-strength waterproof ring, insulating silicone, waterproof and dustproof, and the protection level is IP68.

Stable Self-locking Structure

The connection is connected by compression, and the male and female heads have a self-locking structure, which can be opened and closed freely.

Protection Class IP68

The water depth is 1 meter, lasts for 1 hour, works normally (TUV laboratory test).

Adapt To The Environment

-40℃~+90℃ can be used, suitable for most working environments.

Model Number	MCH201/301/401/501/601
Voltage	DC 1000V
Rated current	50A
Insulation material	PP0
Contact material	copper tin-plated
Waterproof	IP68
Ambient Temperature	-40℃~+95℃
Product Temperature	-40℃~+135℃
Contact resistance	≤0.35mΩ
Incineration level	UL94-VO

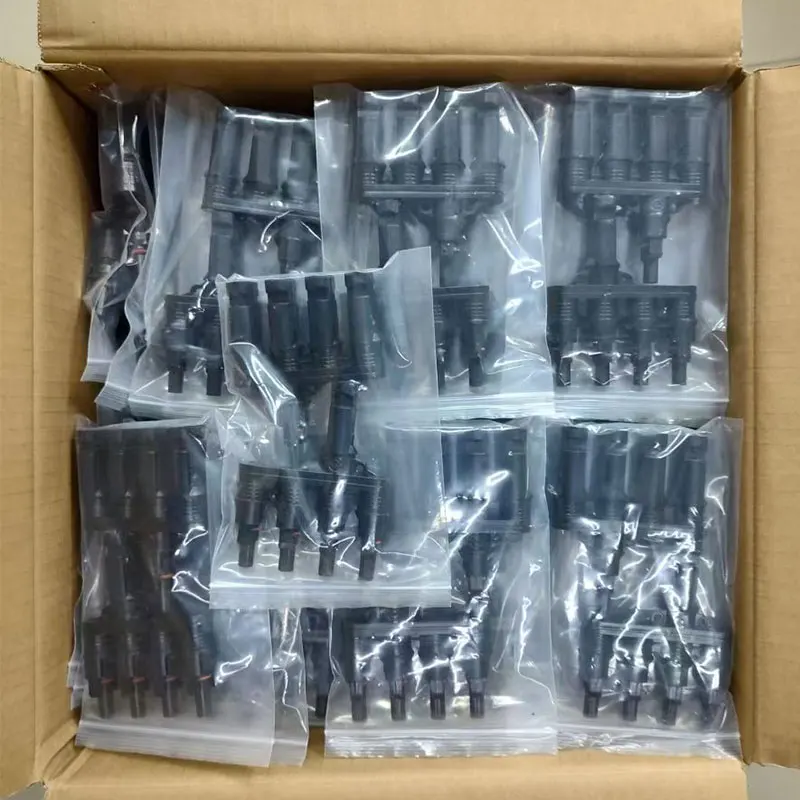

Package Content

MCH201

125 sets per carton

Box weight: 11.5KG

Box size: 35*35*18CM

MCH301

100 sets per carton

Box weight: 13KG

Box size: 35*35*22CM

MCH401

84 sets per carton

Box weight: 14KG

Box size: 35*35*22CM

MCH501

66 sets per box

Box weight: 13KG

 Box size: 35*35*22CM

MCH601

48 sets per carton

Box weight: 13KG

Box size: 35*35*22CM

OUR CUSTOMERS

FAQ

‌1. Q: Are you a factory or a trading company? ‌
A: We are a connector manufacturer with 19 years of experience. We also hold ISO9001, CE, UL and other global certifications and support on-site factory inspections.

‌2. Q: What is the minimum order quantity (MOQ)? ‌
A: The MOQ of standard products is 500 pieces. Customized products need to be evaluated based on the process. Some products support 100 trial orders.

‌3. Q: Can free samples be provided? ‌
A: 1-2 free samples can be provided, but the customer needs to bear the international shipping costs; when there are many sample categories, the sample fee can be fully refunded after placing an order.

‌4. Q: What are the payment methods? ‌
A: Support T/T (30% advance payment + 70% see the copy of the bill of lading), LC, Paypal (small orders), specific details can be negotiated.

‌5. Q: How long is the delivery cycle? ‌
Answer: 15-20 days for conventional products, 25-30 days for customized products (including sample confirmation time), and an additional 10% fee is required for expedited orders.

‌6. Q: What should I do if there are quality problems? ‌
Answer: We provide a 12-month warranty. You can apply for return or reissue with the test report within 7 days after receiving the goods. Please consult the engineer for specific questions
