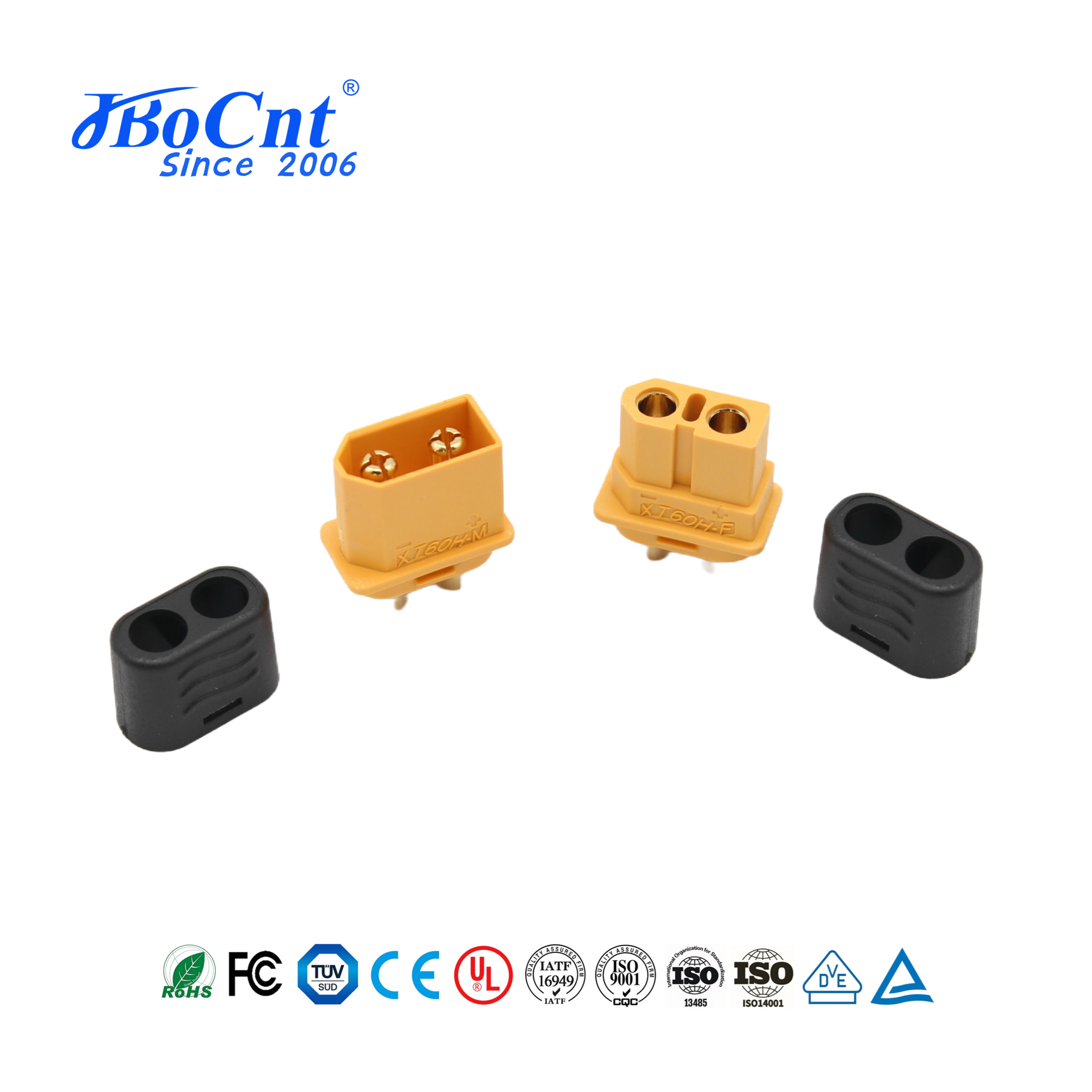

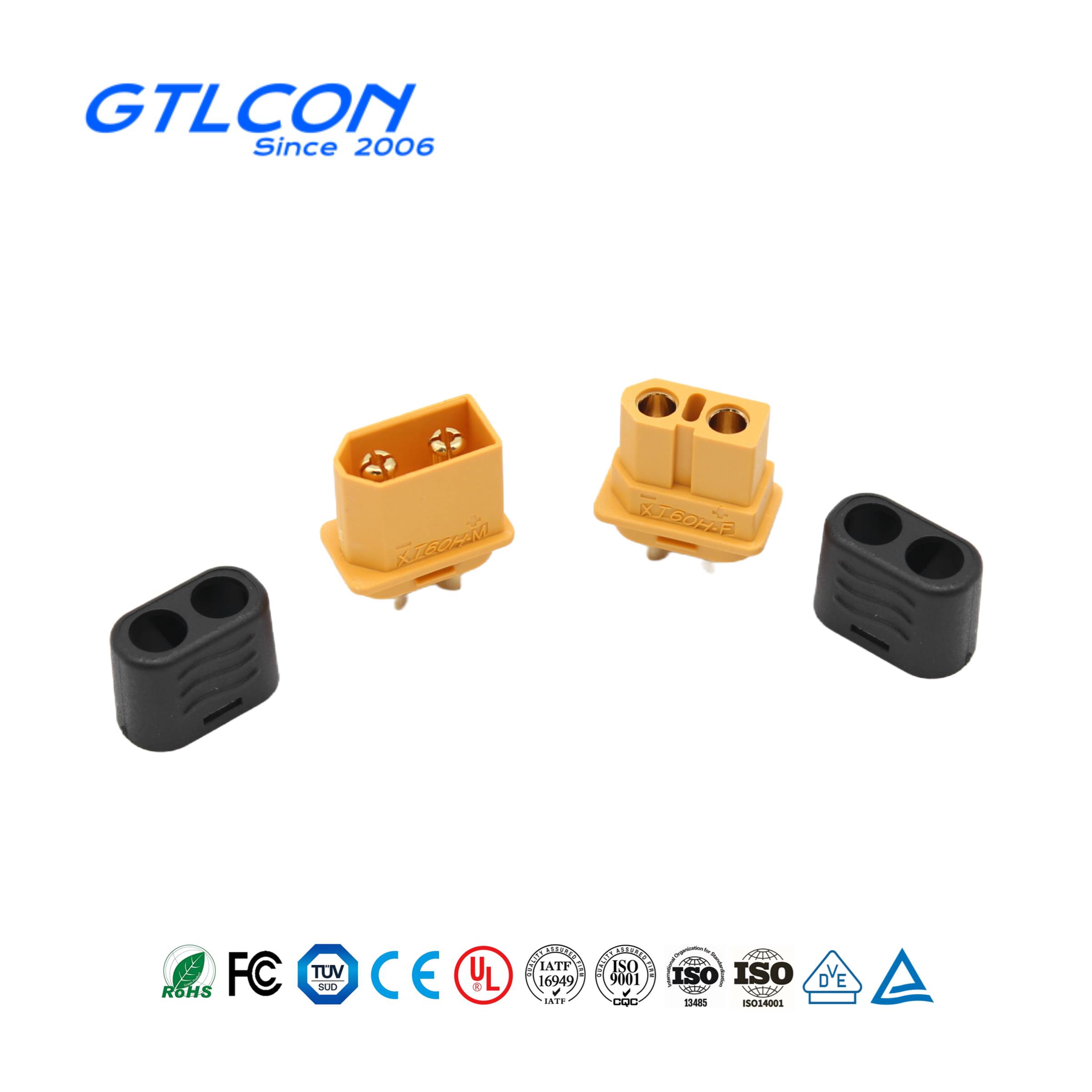

XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell

500 sets
MOQ
Negotiable
Price
XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell
Features Gallery Product Description Chat Now
Features
Specifications
Name: Male And Female Plug Connector
Hardware Materials: Brass/Gold Plated
Mechanical Life: 1000 Times
Product Weight: 8.70g
Rated Current/ Instantaneous Current: 30A/60A
Operating Temperature: -20°C To 120 °C
Housing Material: PA66
Wiring Range: 12AWG
Recommended Welding Standards: 480℃/4S
Highlight:

XT60H Connector

,

Compact Male And Female Plug Connector

,

XT60H Male And Female Plug Connector
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Jbocnt
Certification: CE、TUV、UL、RoHS
Model Number: XT60H
Payment & Shipping Terms
Packaging Details: High quality export packaging
Delivery Time: Sample: 1-3 days; Small order: 3-10 days; Bulk order: 10-18 days
Payment Terms: ,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability: 10000/day
Product Description

Jbocnt Group XT60H Plug Connector With Sheath Shell Male And Female Suitable For Remote Control Lithium Battery Remote Control Drone Car Ship Lithium Battery Aircraft Model Connector


Product advantages


☑  Suitable for a variety of lithium battery packs, with high space utilization
☑  Mature technology, high quality
☑  Long service life, made of first-class copper
☑  Low resistance, high thermal conductivity, and reduced energy loss


Xt60H-F Bullet Plug Motor Connector with Cover Black Sheath
Product Description
Product Name
XT60H-F
Current Rating
35A MAX(12AWG/△＜85℃)
Voltage
500V DC
Insulation Resistance
≥2000MΩ
Contact Resistance
≤1.2MΩ
Salt Spray
48H
Protection Level
IP40
Work Temperature
-20℃-120℃
Flame Level
UL94 V-0
Plastic Housing
PA,Color:Yellow,Black

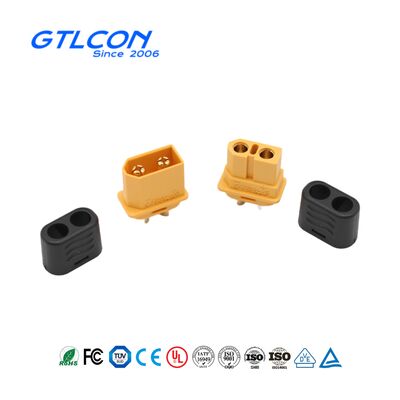

XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell 0


Application Areas

XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell 1


What is the size?


Male


XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell 2        XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell 3     XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell 4


Female


 XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell 5          XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell 6      XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell 7







OUR CUSTOMERS


XT60H Connector , Compact Male And Female Plug Connector With Sheath Shell 8


FAQ



Q1: What is the Minimum Order Quantity(MOQ)?
A1: No quantity limited, Sample order or small order is acceptable, but the customers have to pay the sample cost and the courier cost.
Q2: What is the lead time?(How long will it take to prepare my goods?)
A2: 2-3days for sample orders, 10-15 days for bulk orders.(The exact time will be based on the requirements)
Q3: How will you deliver my goods to me?
A3: Normally, we will ship the goods by air, by sea and by express.
Q4: Can you print my own logo on the products?
A4: Yes, of course. Not only the logo, but also the packing design and other OEM services are available.
Q5: What is your product quality?
A5: Our raw materials are all purchased from qualified suppliers. And we have very strict QC standard to assure our final products meet your requirements.
Q6. Do you test all your goods before delivery?
A6: Yes, we have 100% test before delivery.
Q7: What is your warranty?
A7: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service.
