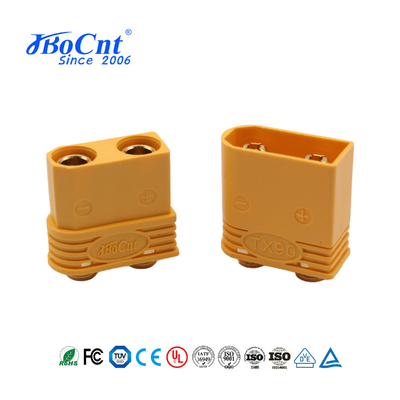

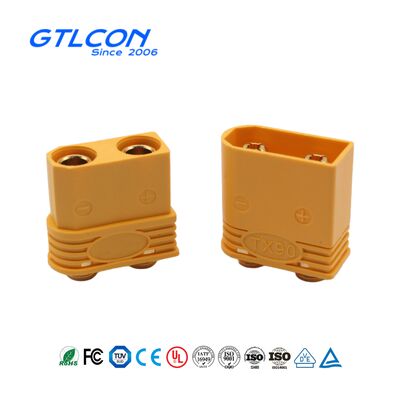

TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount

500 sets
MOQ
Negotiable
Price
TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount
Features Gallery Product Description Chat Now
Features
Specifications
Name: TX90 Connector
Hardware Materials: Brass/Gold Plated
Mechanical Life: 1000 Times
Product Weight: 8.70g
Rated Current/ Instantaneous Current: 40A/80A
Housing Material: PA66
Operating Temperature: -20°C To 120 °C
Wiring Range: 10AWG
Recommended Welding Standards: 480℃/4S
Highlight:

TX90 XT Connectors

,

XT Connectors Male And Female

,

Male and Female 2 pin Connectors

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Jbocnt
Certification: CE、TUV、UL、RoHS
Model Number: TX90
Payment & Shipping Terms
Packaging Details: High quality export packaging
Delivery Time: Sample: 1-3 days; Small order: 3-10 days; Bulk order: 10-18 days
Payment Terms: ,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability: 10000/day
Product Description


Jbocnt Group TX90 Male and Female PCB Panel Mount for Power Battery Charger Model Aircraft Plug Male and Female 2-pin Connector for Brushless Motor Drone Lithium Battery Model Aircraft Connector


Product advantages


☑ Compact structure, high space utilization
☑ Adopt optimized structure, enhance heat dissipation
☑ Easy to install and disassemble
☑ Low resistance, high conductivity, reduce energy loss
☑ Insert a variety of auditory and visual feedback
☑ Adapt to vibration, temperature changes and humid environments


Specification
Product name
60U
Main material/Coating
Brass/Gold plating
Insulating material
PA66
Maximum continuous current
40A
Temperature resistance
-20℃to120℃
MOQ
100pcs
Color
yellow
Certifications
The company has passed ISO9001, ISO14001,CE,UL,NQA,CQC certification, and more than 50 product patents.
TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 0
TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 1
TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 2
TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 3
TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 4
翻译中...
TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 5


Application Areas

This product is suitable for power adapter, charger, switching power supply, LED lamp driving power supply, flash lamp, energy saving lamp, adapter, television , DVD, Audio power amplifier, communication, photography , Frequency conversion machine, Numerical control system, frequency converter, communication power supply, UPS power supply, frequency conversion air conditioning, audio, medical equipment and many other industries.


What is the size?


TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 6


Male


TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 7           TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 8


Female


TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 9    TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 10




OUR CUSTOMERS


TX90 XT Connectors Male and Female 2 pin Connectors PCB Panel Mount 11


FAQ


1. Who are we?
We are located in Guangdong, China, and were established in 2006. Our products are sold to Oceania (30%), the domestic market (10%), South Asia (10%), Southeast Asia (10%), East Asia (10%), North America (5%), Africa (5%), Northern Europe (5%), Central America (5%), South America (5%), and the Middle East (5%).

2. How do we ensure quality?
Pre-production samples are always provided before mass production.
Final inspection is always performed before shipment.

3. What can you buy from us?
Connectors, wiring harnesses, terminals, switches, plugs, and sockets.

4. Why should you buy from us instead of other suppliers?
Factory direct sales, competitive pricing. Our products are globally certified and quality guaranteed. With 19 years of experience, we have earned the recognition and trust of numerous sellers worldwide.

5. What services do we provide? Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDU, Express Delivery;
Accepted Payment Currencies: USD, EUR, AUD, RMB;
Accepted Payment Methods: T/T, L/C, D/A, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Supported Languages: Global
