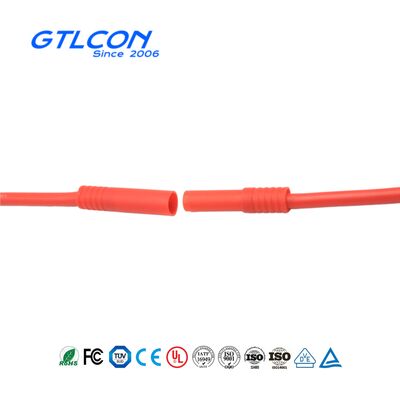

Jbocnt Group 3.5mm Banana Plug Cable Suitable For Drone Lithium Battery Model Aircraft Lithium Battery Banana Socket Harness
The design of this connector has multiple advantages
| 1. High-quality conductor material, low resistance, high conductivity, and reduced energy loss. |
| 2. Adopting optimized structure, enhanced heat dissipation, and service life increased by 1.5 times compared with industry products. |
| 3. Adapt to vibration, temperature changes and humid environments. |
The following is a detailed technical description and application characteristics of the 3.5mm single PIN connector adapter:
1. Core electrical performance
Current load capacity
Rated current: 30 amperes (continuous load)
Peak current: supports 60 amperes instantaneous current overload, suitable for equipment startup impact scenarios .
Contact impedance control
Contact resistance ≤ 0.5mΩ, brass gold-plated terminal design to ensure low-loss transmission .
Voltage compatibility
Industrial-grade 500V DC insulation design, suitable for industrial and commercial equipment and electric vehicle battery systems .
2. Mechanical structure and protection
Compact design
Solve the space problem of small-volume lithium battery packs .
Double protection features
Safety cover : The protective cover prevents accidental loosening and reduces the risk of misoperation .
Environmental tolerance :
IP67 protection level (dustproof and waterproof), adaptable to complex outdoor environments ;
Flame retardant material (UL94 V0 level), operating temperature range -20°C to 105°C .
3. Core application scenarios
Lithium battery system
| Power battery pack connection, portable power interface, support high-density wiring of energy storage equipment |
| Industrial and commercial equipment |
| Industrial automation control cabinet, robotic arm power transmission, adapt to high vibration environment |
Electric vehicle accessories
| Electric motorcycle battery plug, car emergency start power interface, meet instantaneous high current demand |
Special equipment expansion
| UAV power module, intelligent robot power supply interface, compatible with PCB onboard direct connection design |
IV. Certification and compatibility
International certification : Comply with UL lead-free environmental protection standards (PB <100PPM), export trade barrier-free
Interface compatibility : Can be used with adapters to connect mainstream interfaces such as XT30/XT90, with strong scalability
Installation suggestions : Recommended 12-14 AWG wire matching current, riveting/welding process to ensure zero cold solder joints
Note : It is necessary to select the protection model according to different scenarios (such as IP67 waterproof model is recommended for outdoor applications)
What is the size?
Our customers
FAQ
1. Q: Are you a factory or a trading company?
A: We are a connector manufacturer with 19 years of experience. We also hold ISO9001, CE, UL and other global certifications and support on-site factory inspections.
2. Q: What is the minimum order quantity (MOQ)?
A: The MOQ of standard products is 500 pieces. Customized products need to be evaluated based on the process. Some products support 100 trial orders.
3. Q: Can free samples be provided?
A: 1-2 free samples can be provided, but the customer needs to bear the international shipping costs; when there are many sample categories, the sample fee can be fully refunded after placing an order.
4. Q: What are the payment methods?
A: Support T/T (30% advance payment + 70% see the copy of the bill of lading), LC, Paypal (small orders), specific details can be negotiated.
5. Q: How long is the delivery cycle?
Answer: 15-20 days for conventional products, 25-30 days for customized products (including sample confirmation time), and an additional 10% fee is required for expedited orders.
6. Q: What should I do if there are quality problems?
Answer: We provide a 12-month warranty. You can apply for return or reissue with the test report within 7 days after receiving the goods. Please consult the engineer for specific questions
