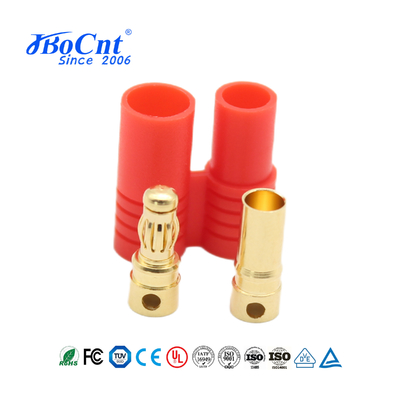

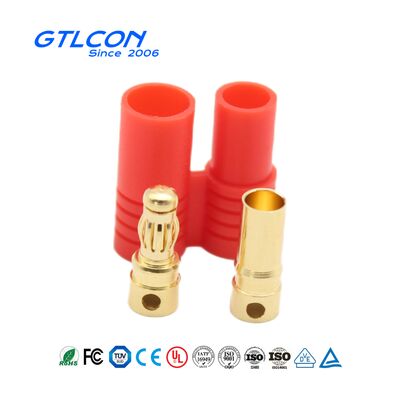

3.5mm Double Banana Plug Connector Nickel Plated Banana Plug For Automotive Test Connector

3. Adapt to vibration, temperature changes and humid environments.

Product Description
3.5MM standard banana plug
Female head length: 12.3mm
Female head maximum outer diameter: 4.7mm
Female head soldering port diameter: 3.5mm
Male head length: 12.7mm
Male head maximum outer diameter: 4.7mm
Male head soldering port diameter: 3.5mm
Maximum stable current: 35A
Continuous peak current for 30 seconds: 75A
Product features:
Environmentally friendly materials are used, lead-free, non-toxic, and meet RHOS standards
The shrapnel is specially treated with beryllium copper, which is flexible and does not deform after multiple plugging and unplugging.
The alloy has good conductivity under high current, stable and constant temperature, and maintains continuous discharge.
The surface of the banana plug is plated with 24K gold, with a thickness of 7U. Even if it is plugged and unplugged a thousand times, the plating will not fall off.
Copper will not oxidize, ensuring the service life of the plug.
The banana plug cover is made of special plastic with moderate hardness and safe insulation.
The outer layer has high friction and is easy to disassemble and assemble.
The male and female connector covers are tight, which can effectively prevent dust from entering.
At the same time, the conductor has good conductivity.
