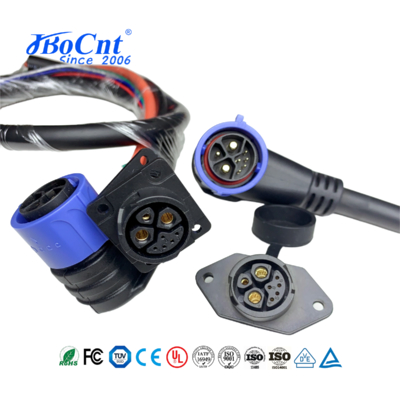

Jbocnt Factory 2+1+5 Pin Plug And Socket Signal Pin Power Electric Scooter Waterproof Connector Electric Bike Motor Wire
The design of this connector has multiple advantages
| 1. High-quality conductor material, low resistance, high conductivity, and reduced energy loss. |
| 2. Made of high-quality materials, waterproof and dustproof, it can adapt to various harsh environments and perform excellently |
| 3. Adapt to vibration, temperature changes and humid environments. |
This waterproof connector is rated at 30 amps and can handle up to 60 amps in a split second. Its key specifications and application features are as follows:
Core Parameters
| Rated current: 30A (continuous working current) |
| Instantaneous current: 60A (short-term peak current, suitable for sudden loads) |
| Rated voltage: DC500V (applicable to DC environment) |
Material and durability:
| Insulation shell: PA (flame retardant, high temperature resistant) |
| Metal contacts: copper plated with gold (low resistance, anti-oxidation, improve conductivity efficiency) |
| Life cycle: supports 1000 plug-in pairings |
Typical applications
Applicable to high-power scenarios, including:
| Lithium battery system: such as energy storage equipment, power tool energy transmission |
| Electric vehicles: motor drive, battery pack connection (need to match 12AWG wire) |
| Outdoor power supply/energy storage equipment: support instantaneous high current output (such as mobile power station) |
Safety and adaptation recommendations
| Current protection: It is recommended to match with overcurrent protection devices (such as fuses or protection boards) to prevent risks caused by instantaneous current exceeding the limit |
Cable matching: 12AWG wire is required for continuous 30A current to ensure heat dissipation and stability
Taking into account both high reliability and compact design |
What is the size?
Our customers
FAQ
Q&A: Analysis of the global competitiveness of Chinese connector manufacturers
Q1: What are your core advantages compared with Southeast Asian manufacturers?
A:
Material technology: military-grade silicone wire (temperature resistant -60℃~200℃) and zinc alloy die-cast shell, passed 96-hour salt spray test
Process standard: main channel plug-in force 40N±5% (better than the industry standard of 50N), contact resistance is still <3mΩ after 1500 cycles
Complete certification: Simultaneously holds UL1977/CE/USCAR-2 three certifications, supporting customers to directly export to the European and American markets
Q2: How to ensure stable quality of large-scale delivery?
A:
Full process control: From copper smelting to electroplating processing, AI quality inspection coverage of key processes is 100%
Traceability system: Each connector is laser-marked with a QR code, and production batch/test data can be queried
Q3: Can customized services be provided?
A:
Quick response: Provide 2+1+5 channel structure adjustment plan within 72 hours (including 3D drawings)
Flexible adaptation: Support main channel 30A-60A current specification switching, shell color/logo can be customized
Q4: What guarantees are there for after-sales support?
A:
Technical team: Equipped with global engineers, respond to technical consultation within 15 minutes
Spare parts network: 50,000 pieces of inventory are available in the US/Germany overseas warehouse, and emergency orders arrive in 7 days
Q5: Why choose Made in China?
A:
Cost advantage: Large-scale production makes the price 30-50% lower than similar products in Europe and the United States
Innovation speed: Iterate 2 generations of products every year (Top 3 in the industry in terms of patent holdings)
Ecological maturity: 200+ suppliers within a 30-kilometer radius, shortening the material procurement cycle by 60%
